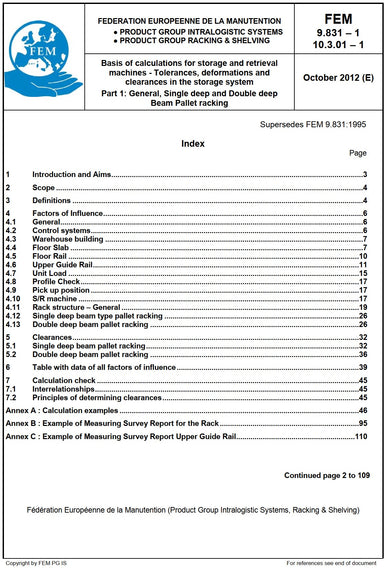

FEM 9.831-1 - Basis of calculations for storage and retrieval machines - Tolerances, deformations and clearances in the storage system / Part 1: General, Single deep and Double deep Beam Pallet racking

FEM 9.831-1-EN

A storage system, operated by Storage/Retrieval (S/R) machines, forms a functional unit consisting of components which are subject to tolerances resulting from manufacture and erection, as well as deformations from operation under load.

The aim of this document is to show the relationship of the individual system components. Permissible practical tolerances and deformations are listed for typical system solutions. The aim is that the values for individual system components will result in clearly defined responsibility in the event of interface problems.

The aim of this document is to determine the admissible deformations and tolerances in order to optimise the factors relating to the economical dimensioning, manufacturing and assembly required for the safe operation of the overall system.

Please note: this document is listed both, as FEM 9.831-1 and FEM 10.3.01-1
