Cranes & Lifting

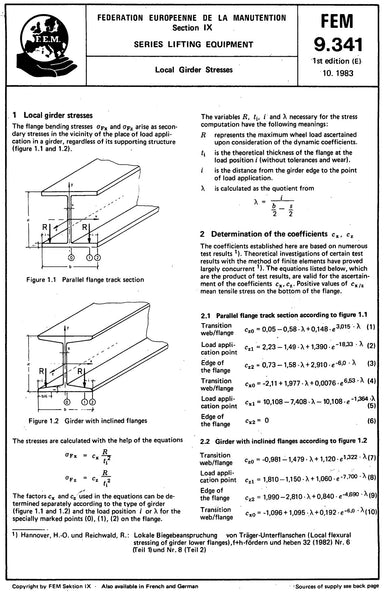

FEM 9.341 - Lifting Equipment: Local Girder Stresses
FEM 9.341-EN
Language version
€30
Calculation Methods for Local Girder Stresses.
Design rules are given for local flange bending stresses on rolled sections with inclined and parallel flanges. The design rules are based on the results of tests 1). Measurements on the following sections were evaluated: I 200, I 300 as in DIN 1025 part 1 and IPE 200, 300, 360 as in DIN 1025 part 5. The load was distributed symmetrically along the longitudinal axes of the girders. The lower chord of box girders with an underrunning trolley should also be calculated using geometric characteristics with the equations for the parallel-flange girder.
